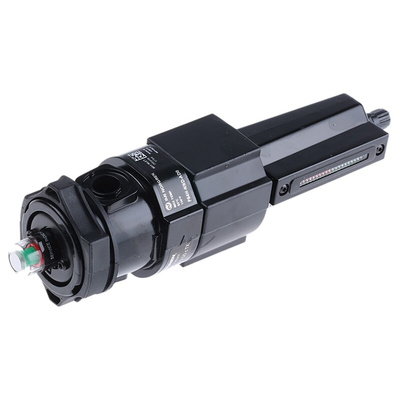

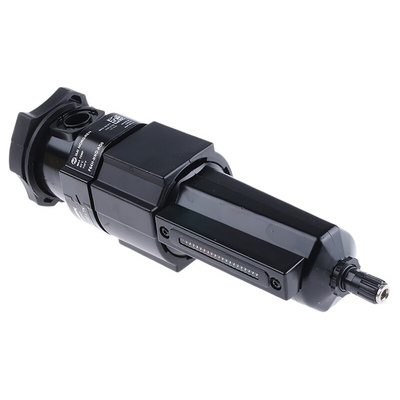

F64H-NND-AD0, Norgren F64H series 0μm G 3/8 17 bar Pneumatic Filter with Automatic drain, Фильтр

Coalescing Filter

Conditions air to technically oil-free standards
Maximum flow rate is 28dm³/s
0.01μm filtration size
Oil removal (max remaining oil contact) 0.01ppm at 21°C
Two-stage filtration incorporates a pre-filter which removes dirt and a coalescing element which converts oil and water mist to liquid form which can then be drained away
Yoke required to fit
All seals, elements and drain within service kit

Filters

Olympian® is a registered name of Norgren.

Olympian Plus units must be mounted in yokes which can be ordered separately, or used with existing 1/2 in Olympian yokes

Quarter-turn graphite impregnated clamp rings
Safety detent action reventing removal under pressure
