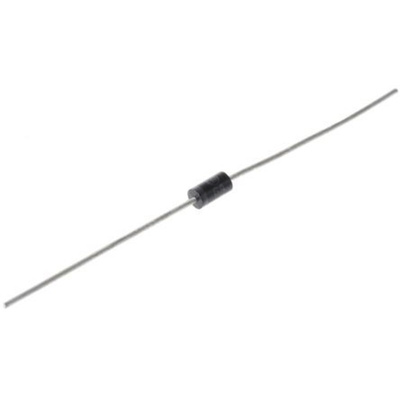

1N4753A, onsemi, 36V Zener Diode 5% 1 W Through Hole 2-Pin DO-41, Стабилитрон

This is a complete series of 1 Watt Zener diode with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead hermetically sealed glass package that offers protection in all common environmental conditions.

Zener Voltage Range - 3.3 V to 91 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
DO-41 (DO-204AL) Package
Double Slug Type Construction
Metallurgical Bonded Construction
Oxide Passivated Die
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16" from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any

Datasheet 1N4753A
