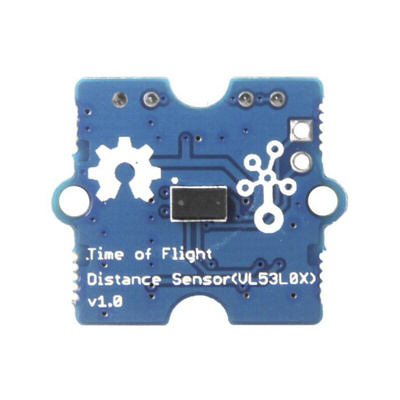

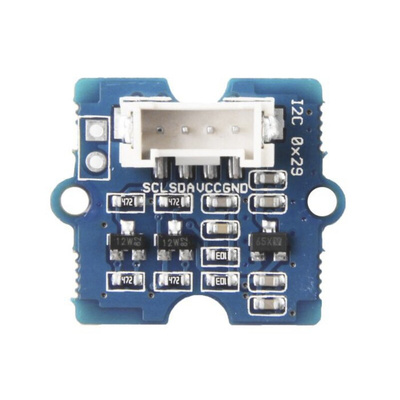

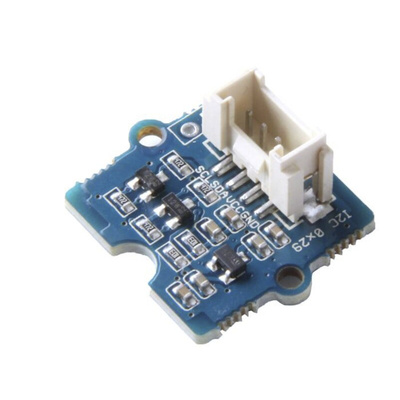

101020532, Seeed Studio Grove - Time of Flight Distance Sensor(VL53L0X) Sensor Board for VL53L0X

Grove - Time of Flight Distance Sensor-VL53L0X is a high speed, high accuracy and long range distance sensor based on VL53L0X. The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectance unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications. The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation Flight SenseTM patented technology. The VL53L0X’s 940 nm VCSEL emitter (Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.

Fully integrated miniature module
940 nm laser VCSEL
VCSEL driver
Ranging sensor with advanced embedded micro controller
Fast, accurate distance ranging
Measures absolute range up to 2
Reported range is independent of the target reflectance
Advanced embedded optical cross-talk compensation to simplify cover glass selection
Eye safe
Class 1 laser device
Easy integration
Single power supply
I2C interface for device control and data transfer
shutdown (reset) and interrupt GPIO
Programmable I2C address

Datasheet 101020532
