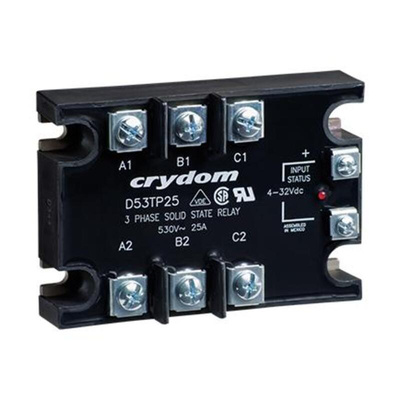

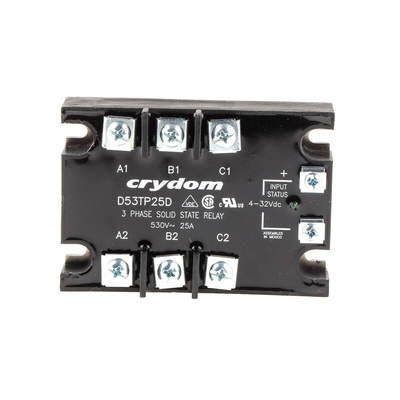

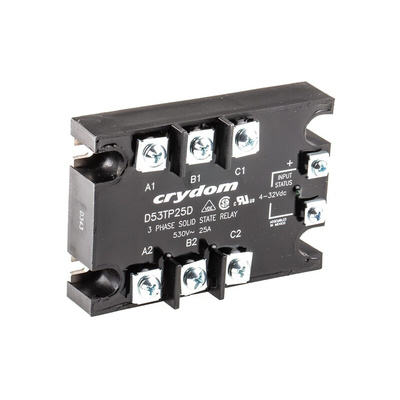

D53TP25D, Sensata / Crydom Solid State Relay, 25 A rms Load, Panel Mount, 530 V rms Load, 32 V dc Control, Реле

53TP 25-50A, 530Vac, 3 Phase SSRs

High reliability
SCR output
LED status indicator
Direct load switching of motors, heaters and transformers
Dimensions:H30 x W73.4 x D103.8mm
Terminal Type Screw; Saddle Clamp
8pF Input-Output Capacitance

Note

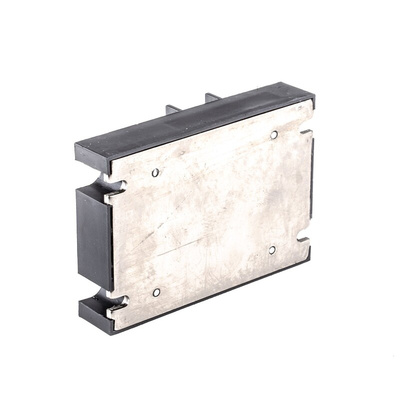

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL, CSA, VDE

Sensata | Crydom Solid-State Relay, 3 Phases, 0.05 to 25A Load Current Range - 53TP Series - D53TP25D

Looking for a reliable switching solution for your circuits? Choose this three-phase solid-state relay from Sensata | Crydom. The unit's SCR output helps to support heavy loads, making it suitable for use in demanding systems. Integrated transient overvoltage protection of 1200V helps to minimise the risk of damage to your equipment in the event of a powerful surge. Thanks to its broad operating voltage range between 48 and 530V AC, it's a versatile choice. Screw and saddle clamp terminals help to ensure secure installation and prevent accidental disconnection. You can use this relay for motor speed, lighting and circuit controls.

Features & Benefits

• LED status indicator for ease of monitoring and troubleshooting
• Wide operating temperature range between -40°C and +80°C for use in harsh conditions
• Lack of moving parts means there's minimal wear for a long service life

Can I install this solid-state relay in tight spaces?

Yes, thanks to its compact dimensions of 103.8 (L) x 30 (W) x 73.4mm (H), the unit fits easily in confined spaces.

Approvals

UL; C-UL Recognised; VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

VDE 5941

MTBF Information

Solid State Relay - CE-Declaration of Conformity

Declaration of Conformity 2014/35/EU

Datasheet - D53TP

Line Drawing - 53TP Series
