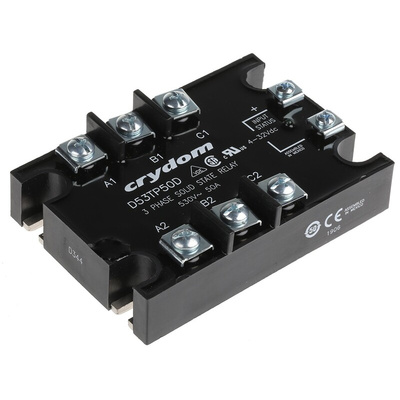

D53TP50D, Sensata / Crydom Solid State Relay, 50 A rms Load, Panel Mount, 530 V rms Load, 32 V Control, Реле

53TP 25-50A, 530Vac, 3 Phase SSRs

High reliability
SCR output
LED status indicator
Direct load switching of motors, heaters and transformers
Dimensions:H30 x W73.4 x D103.8mm
Terminal Type Screw; Saddle Clamp
8pF Input-Output Capacitance

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL, CSA, VDE

Sensata | Crydom Solid-State Relay, 3 Phases, 0.05 to 50A Load Current Range - 53TP Series - D53TP50D

Use this solid-state relay from Sensata | Crydom for fast and reliable switching functions. As it has no moving parts, there's minimal risk of wear to ensure consistent performance. An SCR output helps to support heavy loads, so it's suitable for demanding applications. Integral transient overvoltage protection of 1200V shields the device against spikes in voltage to prevent equipment damage. You can install this versatile component with AC or DC-controlled lighting systems, microprocessors and automated factory equipment.

Features & Benefits

• LED status indicator for ease of monitoring
• Small size of 103.8 (L) x 30 (W) x 73.4mm (H) for installation in confined spaces
• Broad operating temperature range between -40°C and +80°C for use in challenging conditions

What load current can this solid-state relay handle?

This solid-state relay has a wide load current range of 0.05 to 50A, making it suitable for use in light-duty and demanding applications.

What does zero-cross switching mean?

Zero cross-switching means the solid-state relay is turned on when AC load power approaches 0V, helping to suppress generated noise.

Approvals

UL; C-UL Recognised; VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

MTBF Information

Solid State Relay - CE-Declaration of Conformity

Declaration of Conformity 2014/35/EU

Datasheet - D53TP

Line Drawing - 53TP Series
