KS300, Sensata / Crydom Relay Cover for use with Single Phase SSRs, Three Phase SSRs, Крышка

53TP 25-50A, 530Vac, 3 Phase SSRs

High reliability
SCR output
LED status indicator
Direct load switching of motors, heaters and transformers
Dimensions:H30 x W73.4 x D103.8mm
Terminal Type Screw; Saddle Clamp
8pF Input-Output Capacitance

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL, CSA, VDE

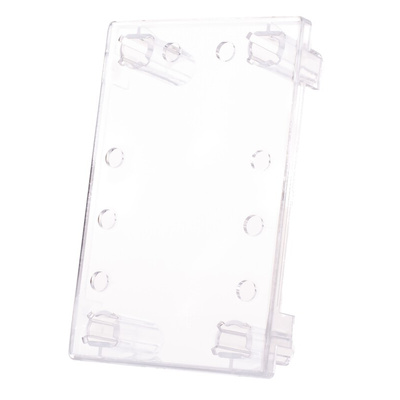

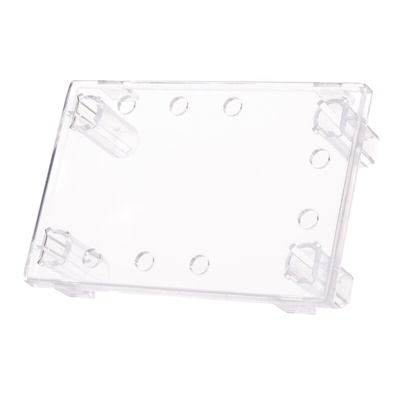

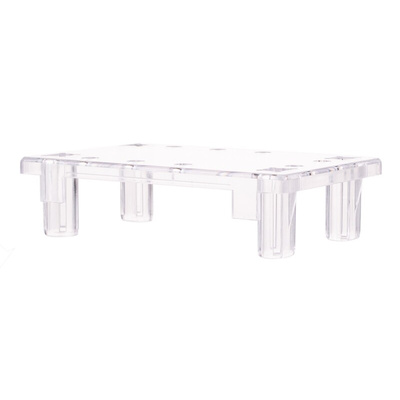

Sensata | Crydom Relay Cover, For Use With Solid-State Relays, Polycarbonate Material - KS300

Need to protect your SSR from contamination or damage? This relay cover from Sensata | Crydom is made from transparent polycarbonate to provide strong and durable protection while allowing you a clear view of the relay. It also provides effective insulation to protect against electric shock. You can use this unit to protect both single and three-phase relays, making it a versatile option.

Features & Benefits

• Pre-drilled holes for ease of installation
• Flame-retardant to prevent the spread of flames in the event of a fire

What's a solid-state relay?

A solid-state relay is an electronic switching device that will turn a circuit on or off when an external AC or DC voltage is applied across its terminals. As it contains no moving parts, it offers a longer service life than an electromechanical relay.

Where would I use a solid-state relay?

Solid-state relays are most commonly used for switching AC loads in applications such such as dimmer lights or motors. They're commonly used in the railway sector, the food and beverage industry and healthcare settings.

Approvals

UL; C-UL Recognised; VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

MTBF Information

Datasheet

Declaration of Conformity 2014/35/EU
