IME08-06NPOZT0S, Sick Inductive Barrel-Style Proximity Sensor, M8 x 1, 6 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

IME Series Inductive Sensors

SICK IME series inductive proximity sensors offer precise detection, less downtime and long service life. The inductive sensors pack high technology into the smallest of spaces. An integrated ASIC chip enables digital adjustment after the end of the manufacturing process.

The ASIC chip ensures highly precise switching points and very high repeatability of values, for any number of production runs. IME sensors are completely encapsulated with hotmelt moulding, which greatly increases shock and vibration resistance.

Features and Benefits

· Extended sensing ranges: 1.5 mm to 38 mm
· Enclosure rating: IP 67
· Nickel-plated brass housing with a plastic sensing face
· High machine availability thanks to a rugged design
· High positioning accuracy thanks to precise switching behaviour

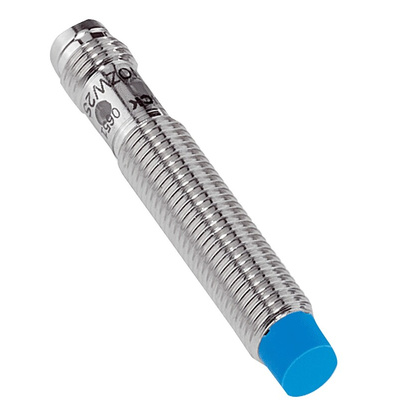

IME08-06NPOZT

SICK IME08-06NPOZT inductive proximity sensor features a sensing range upto 6 mm with a PNP-NC output. The sensors is encapsulated in nickel-plated brass with a M8 x 1 fully threaded body and a M8 3 Pin electrical connection.
