1071226, Sick M12 x 1 Inductive Proximity Sensor - Barrel, PNP Output, 6 mm Detection, IP67, M12 - 4 Pin Terminal, Индуктивный датчик приближения

1846341
Номер производителя: 1071226Производитель: Sick
Цена за шт.
15378.00 руб. (С НДС) *
Количество 5+
Цена 14763.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IME Series Inductive Sensors

SICK IME series inductive proximity sensors offer precise detection, less downtime and long service life. The inductive sensors pack high technology into the smallest of spaces. An integrated ASIC chip enables digital adjustment after the end of the manufacturing process.

The ASIC chip ensures highly precise switching points and very high repeatability of values, for any number of production runs. IME sensors are completely encapsulated with hotmelt moulding, which greatly increases shock and vibration resistance.

Features and Benefits

· Extended sensing ranges: 1.5 mm to 38 mm
· Enclosure rating: IP 67
· Nickel-plated brass housing with a plastic sensing face
· High machine availability thanks to a rugged design
· High positioning accuracy thanks to precise switching behaviour

IME12-06BPSZC

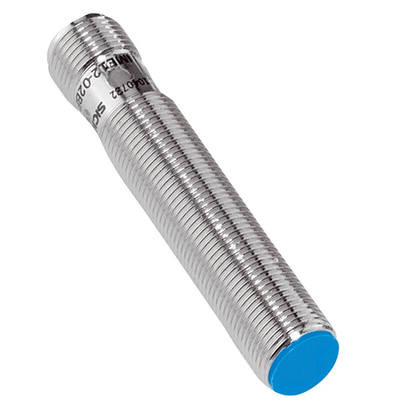

SICK IME12-06BPSZC inductive proximity sensor features a sensing range upto 6 mm with a PNP-NO output. The sensors is encapsulated in nickel-plated brass with a M12 x 1 fully threaded body and a M12 4 Pin electrical connection.

Sick Inductive Sensors

Техническая спецификация
pdfDatasheet 1071226
Вид корпуса:
Бочковидный
Встречающиеся стандарты:
CE Certified, cULus Listed
Диапазон обнаружения:
6 мм
Длина:
65мм
Защита от короткого перегрузочного замыкания:
Да
Защита от обратной полярности:
Да
Коммутируемый ток:
10 мА
Максимальная частота переключений:
800Гц
Максимальное напряжение постоянного тока:
30В
Материал корпуса:
Brass Nickel Plated
Напряжение питания:
10 → 30 В пост. тока
Рабочая температура - максимальная:
+75°C
Рабочая температура - минимальная:
-25°C
Размер резьбы:
M12 x 1
Степень защиты IP:
IP67
Технология датчика:
Индуктивный
Тип выхода:
PNP
Тип клеммы:
M12 - 4 Pin
Тип монтажа:
Заподлицо монтаж
Ширина:
12мм
Экранирование:
Экранированный
