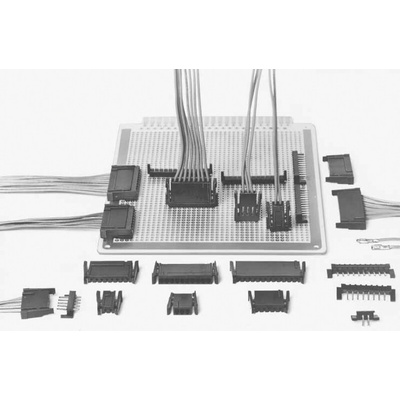

HNC2-2.5P-2DS(02), Hirose HNC Series Straight Through Hole PCB Header, 2 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded

2.5mm Pitch Connector for Discrete Wire Connection

Full Lock Mechanism
Thin Type Connector Mounting height when the connector is used at the right angle : 4.8mm
Mechanism to Prevent Mis-insertion
Tin Plating and Gold Plating Variation

Full Lock Mechanism The connector is equipped with the full lock mechanism so as not be removed, unless locks are reset on both sides. This mechanism is activated effectively to prevent extraction by cable hooking or other causes.
Thin Type Connector Mounting height when the connector is used at the right angle : 4.8mm
Mechanism to Prevent Mis-insertion This thin type connector is equipped with the mechanism to prevent mis- insertion.
Tin Plating and Gold Plating Variation Two kinds of tin plating and gold plating types are available, and can be chosen according to application. The tin plating is also set to a light operating touch.
Applications
Various business equipment, financial terminals

Datasheet HNC2-2.5P-2DS(02)
