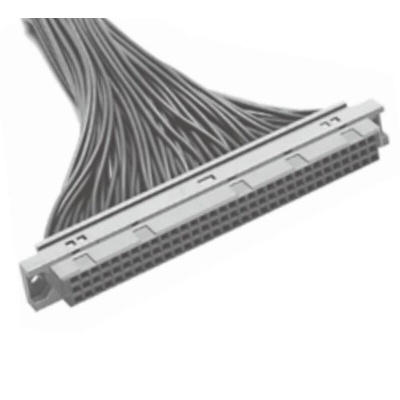

PCN10-96S-2.54C, Hirose PCN 96 Way 2.54mm Pitch, Type Socket, 3 Row, Straight Backplane Connector, Socket, Разъем

Variation in number of contacts 10, 16, 20, 24, 28, 30, 32, 44, 48, 50, 64, 90, 96, 100, 128, and 144
Two point contact construction
Broad applications DIN standard types of B, C, R, and Q are available.
Stacking height variation PCN10H series contains 25, 30, 35, 40 and 45mm stacking height.
Circuit protection function available. --- PCN10MC series
Cable connector

Variation in number of contacts 10, 16, 20, 24, 28, 30, 32, 44, 48, 50, 64, 90, 96, 100, 128, and 144 contacts are available.
Two point contact construction PCN10 and 12 series are constructed with high reliable doublesided two point contacts. PCN13 series pursues after cost performance, and constructed with single sided two point contacts.
Broad applications DIN standard types of B, C, R, and Q are available. The flux tight product is available. The easy lock pin type to prefix the board is available.
Stacking height variation PCN10H series contains 25, 30, 35, 40 and 45mm stacking height.
Circuit protection function available PCN10MC series utilizes a sequence structure for circuit protection function.
Cable connector ID connector for ribbon cable is available. The connector is prepared for crimping connection for AWC#26 to 30 cables.
Application
Control equipment, exchange, measuring instruments etc.

Datasheet PCN10-96S-2.54C
