RS PRO Natural Nylon Rod, 500mm x 100mm Diameter, Стержень

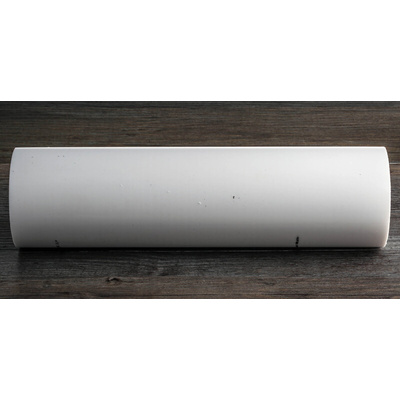

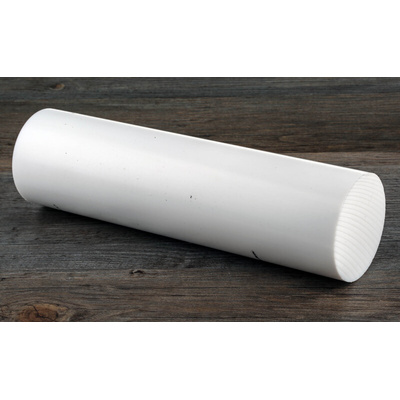

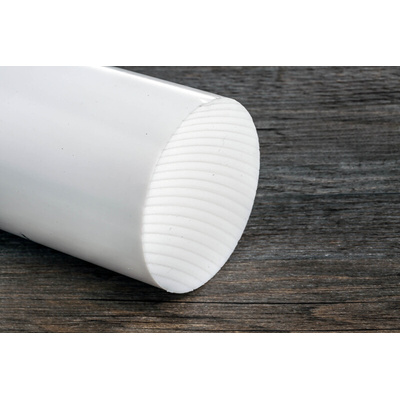

RS PRO Natural Nylon Rod, 500 mm x 100 mm Diameter

Designed for long-lasting operation in harsh conditions, this cast nylon rod from our RS PRO series is a tough component for use in heavy-duty environments.

Cast nylon offers many advantages over comparable materials. It has a considerably lower stress level than its extruded counterparts. In fact, this rod is free of all internal stresses for better dimensional stability, easier machining and higher tensile and impact strength. These benefits are reflected in the rod’s M 90 Rockwell hardness rating and tensile strength of 85 MPa. It also has exceptional resistance to abrasion, chemicals, acids and alkalis. With a maximum operating temperature of +180°C and a UL 94 H-B flammability rating, it can handle high heat and is self-extinguishing.

This product conforms to the DIN 50 014 classification for resistance to corrosion in standard climates. It’s well-suited for all bearing, brush and gear applications.

Features and Benefits

• Rods made from cast nylon 6
• Natural colour
• Length of 500 mm
• Rod diameter of 100 mm
• Density of 1.15g/cm³
• Tensile strength of 60 MPa when wet and 85 MPa when dry
• UL 94 HB flammability rating so it's self-extinguishing
• Maximum operating temperature of +180 °C
• Melting point of +220 °C
• Elongation of 50%
• M 90 Rockwell hardness rating
• Conforms to the DIN 50 014 standards for corrosion resistance
• RoHS (Restriction of Hazardous Substances) compliant so no hazardous substance is present in excess of 0.1%

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

DIN 50 014

RS Pro Datasheet
