RS PRO 7-Segment LCD Display, Black on Grey, 1 Row by 4 Characters, Reflective, Дисплей

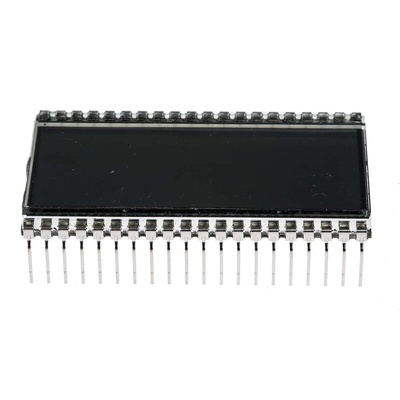

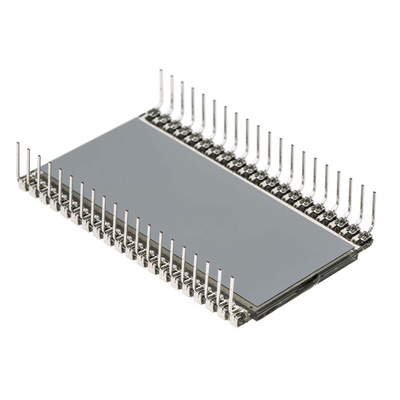

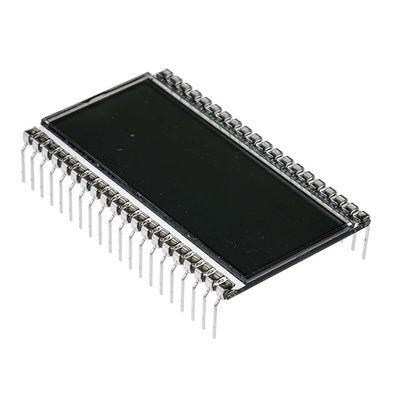

RS PRO 7-Segment LCD Display, Black on Grey, 1 Row by 4 Characters, Reflective

LCD (liquid crystal display) flat panels are suitable for electronic circuits in devices such as digital cameras, watches and DVD players, as well as calculators and clocks. This LCD monochrome display has reflective properties making it suitable for use in direct sunlight and low-light situations.

Its low-energy consumption means that this display unit is an ideal choice for battery-powered devices. Its compact screen is simple to attach to your PCB (printed circuit board). The seven-segment display format includes inter-digit decimal points and alternate inter-digit colons. This model will display four characters in one row.

The display characters – 7 mm wide and 12.7 mm high – are black on a grey background. Thanks to a wide viewing angle, they can be seen from multiple directions. The LCD monochrome display can function in temperatures ranging from -30°C to +80°C. You'll find it commonly used on instrument control panels.

Features and Benefits

• Liquid crystal display
• Low energy use
• Suitable for battery-powered equipment
• Monochrome display
• Black segments on a grey background
• Standard 7-segment format
• Reflective display mode
• Wide viewing angle
• 1 row, 4 character display
• Characters are 7 mm wide by 12.7 mm high
• 47 x 18 mm viewing area
• External dimensions of 50.8 mm (L) x 2.9 mm (D) x 30.5 mm (W)
• Constructed on a flat glass plate with rigid pins in a DIL (dual in-line) package format
• Operating temperature range of -30 to +80°C
