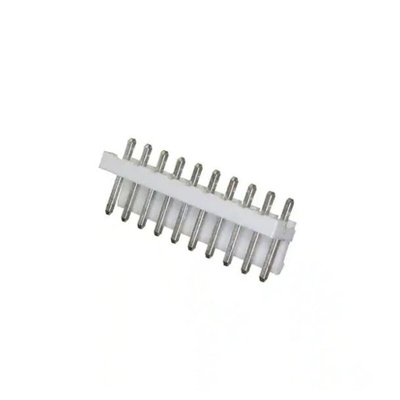

B10P-VH-B(LF)(SN), JST VH Series Top Entry Through Hole PCB Header, 10 Contact(s), 3.96mm Pitch, 1 Row(s), Shrouded

1848378
Номер производителя: B10P-VH-B(LF)(SN)Производитель: JST
Цена за шт. (норма упаковки 20 шт)
183.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

With a large current carrying capacity, the VH connector can be used with a wide variety of signal, power supply, and output circuits. Compact connector (with a mounting height of 16.5mm) with a large capacity (10A). The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion. This small, field-proven connector for PC boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.

Proven box contact
This connector was developed with the same box-shaped contact design used successfully in the NH connectors. The reliable VH connector can be used in a wide variety of applications, from low-voltage, low-current signal circuits to power supply circuits having a relatively large capacity.
Compact connector with a large capacity
Even though this connector has a large current carrying capacity (10A), it is compact, with a mounting height of 16.5mm (.650").
Secure contact and mounting
The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion (misalignment or reverse insertion).

Техническая спецификация
pdfDatasheet B10P-VH-B(LF)(SN)
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
10
Количество рядов:
1
Концевая заделка:
Crimp
Материал контактов:
Латунь
Номинал тока:
10.0A
Номинальное напряжение:
250.0 V
Ориентация корпуса:
Top Entry
Покрытие контактов:
Медь, Олово
Серия:
VH
Система соединителя:
Wire to Board
Тип монтажа:
Сквозное отверстие
Шаг:
3.96мм
