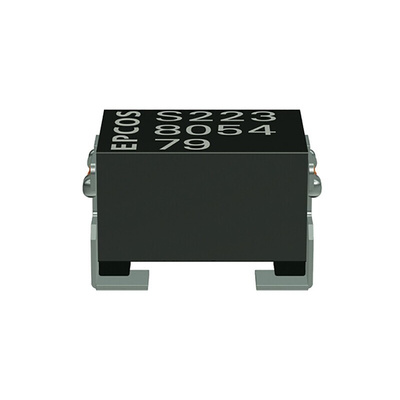

B82789C0104H002, EPCOS 100 μH 150 mA Common Mode Choke 1.5Ω 42 V ac, 80 V dc, Дроссель

Temperature range up to +150 °C
Suitable for lead-free reflow soldering
For gold-plated terminals conductive adhesion possible
Function
B82789C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly.
B82789S0: Suppression of asymmetrical (by LR) and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced.
Applications
Automotive applications, e.g. CAN and FlexRay bus
Industrial field bus systems
Line cards for telecom
Tinned terminals Base material CuSn6
Layer composition Ni, Ag, Sn1)
Lead-free tinned

Datasheet B82789C0104H002
