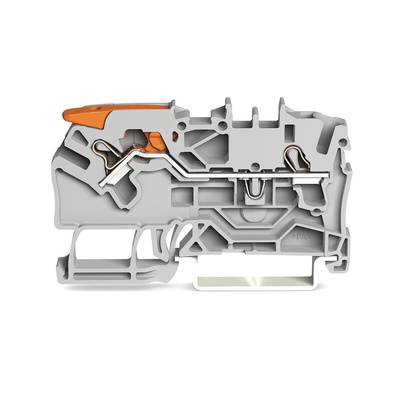

2102-1201, Wago TOPJOB S, 2102 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,

Wago DIN Rail Terminal Block, 22 to 12AWG Wire Size Range, Front-Entry Wiring - TOPJOB S Series - 2102-1201

Securely connect wires in your setup using this DIN rail terminal block from Wago. You can insert wires that range in size from 22 to 12AWG, making it a versatile piece of kit. A current rating of 24A means it can withstand the rigours of high-power electrical systems. It features simple push-in cage clamp terminals, saving you the hassle of digging out tools to attach your cables.

Features & Benefits

• PA housing offers insulation protection to prevent damage from electrical faults
• Two connection points let you attach up to two wires
• Compact pitch size of 5.2mm to accommodate small conductors

Applications

• Lighting fixtures
• Manufacturing industry
• Process control systems

What size is this terminal block?

It has compact external dimensions of 61.5 (H) x 5.2 (W) x 32.9mm (D), so you can maximise space on your DIN rail.

Where do I connect wires to this component?

This terminal block features front-entry wiring, meaning you can easily attach your cables without passing them to the sides or back.

Datasheet 2102-1201
