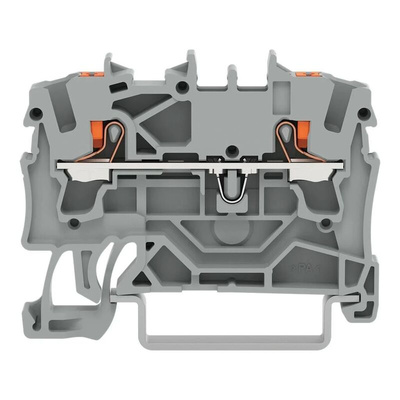

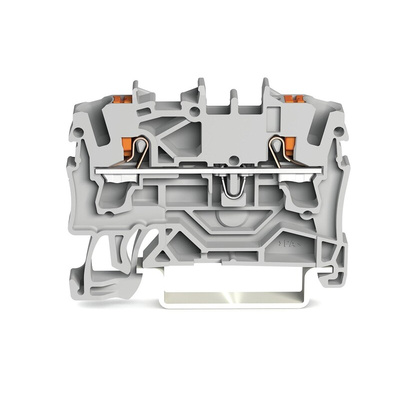

2202-1201, Wago TOPJOB S, 2202 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,

Wago DIN Rail Terminal Block, 800V Voltage Rating, PA Housing Material - TOPJOB S Series - 2202-1201

Need a trustworthy connector to link wires in your setup? Pick up this DIN rail terminal block from Wago. Push-in cage clamp connectors make installation a snap without the need for complex tools. Its durable PA housing packs a double punch, as it insulates against electric shock and provides resistance to impact. As the block has a rated surge voltage of 8kV, it can handle sudden spikes for improved safety. A voltage rating of 800V makes this component the right choice for heavy-duty applications.

Features & Benefits

• Front-entry wiring for easy access in cramped setups
• Safe for use in challenging conditions, thanks to a wide operating temperature range between -60°C and +105°C
• Compact dimensions of 48.5 (H) x 5.2 (W) x 32.9mm (D) for use in enclosures with limited space
• DIN rail mounting for ease of installation

Applications

• Oil and gas plants
• HVAC systems
• Aerospace engineering

What wire sizes can this block accomodate?

The block accommodates solid and fine-stranded wires ranging in size between 22 and 12AWG, making it a versatile solution.

Datasheet 2202-1201
