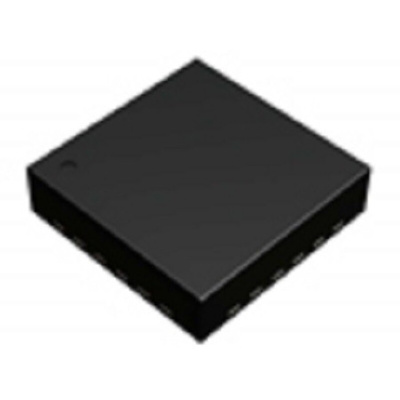

ROHM BD63001AMUV-E2 Brushless DC Motor Controller 24-Pin, VQFN, Драйвер двигателя

BD63001AMUV is a Three-Phase Brushless Motor Predriver that uses upper Pch and lower Nch MOS transistor for an external output power transistor. It generates a driving signal from the Hall sensor and drives PWM through the input control signal. In addition, the supply voltage that can be applied is 12V or 24V, it has various controls and built-in protection functions, making it useful for a variety of purposes. Since the IC adopts small packages, it can be used on small diameter motors.

Built-in 120° Commutation Logic Circuit
Drives Upper Pch, Lower Nch MOS transistor
PWM control system /DC control system
CW/CCW Function
FG Output (1FG Output)
Current Limit Protection Circuit (CL)
Overheat Protection Circuit (TSD)
Under Voltage Protection Circuit (UVLO)
Over Voltage Protection Circuit (OVLO)
Motor Lock Protection (MLP)

Datasheet BD63001AMUV-E2
