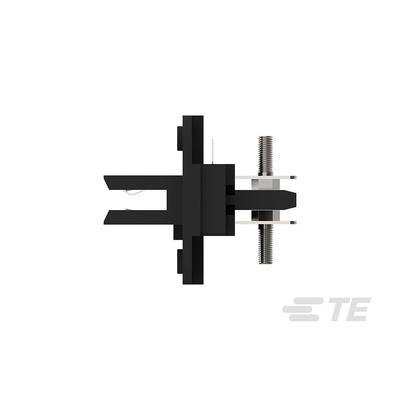

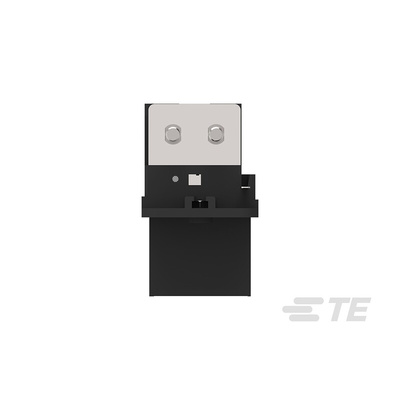

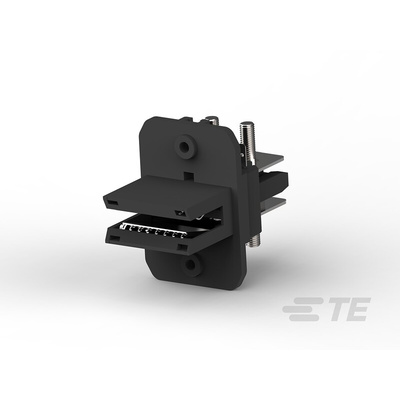

2204866-1, TE Connectivity 14mm Pitch Power Backplane Connector, Female, 1 Row, 2 Way, Разъем

TE Connectivity 2204866-1

Connector Type=Connector Assembly, Connector System=Wire-to-Bus Bar, Sealable=No, Connector & Contact Terminates To=Bus Bar, Connector Style=Receptacle, Number of Positions=2, Operating Voltage Reference=AC/DC, Current Rating=500 A, Hot Pluggable=Yes, Insulation Material=Thermoplastic, Color=Black, Contact Design=Multiple Contact Point, Contact Base Material=Copper Alloy, Contact Plating Material=Silver, Contact Current Rating (Max)=500 A, PCB Termination=Through Hole - Screw, Mating Alignment Type=Blindmate, Mating Alignment=Yes, Mounting Retention=Yes, Mounting Retention Type=Mounting Hole, Housing Material=Thermoplastic, Height=38 mm, Operating Temperature Range=-45 – 105 °C, Circuit Application=Power, Packaging Method=Box, Comment=Dual Pole, Blade Thickness=6 mm

Datasheet
