Keysight Technologies N2843A Oscilloscope Probe, Passive Type, 500MHz, 10:1, Щупы для осциллографа

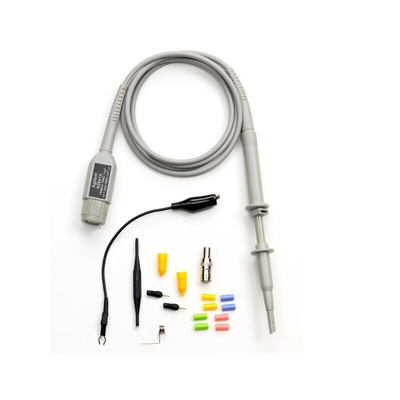

Keysight Technologies Oscilloscope Probe, 500MHz Bandwidth, 1.2m Cable Length - N2843A

For high-speed measurements and accurate signal testing, use this oscilloscope probe from Keysight Technologies. It allows you to connect your signal source to your oscilloscope so you can easily monitor your data signals. The probe has a large bandwidth of 500MHz, so it can precisely measure signals at both low and high frequencies. As this device is a passive probe, it doesn't need an external power source to operate, making it a convenient choice.

Features & Benefits

• Broad operating temperature range of 0°C to +50°C for use in challenging conditions
• High input resistance of 10MΩ to minimise probe loading
• Compatible with oscilloscopes from the InfiniiVision and Infiniium series for ease of assembly
• Low capacitance of 11pF reduces noise to ensure accurate readings
• Cable length of 1.2m for a flexible connection

Applications

• Consumer electronics industry
• Research facilities
• Automotive systems

Do I need to compensate this probe prior to use?

To ensure accurate results, you should compensate this probe according to the specifications of your oscilloscope. This probe features a built-in autoscale function and a low-frequency compensation adjustment for simple set-up.

Datasheet N2843A

Manual - High-Impedancen Passive Probes
