RS PRO, 10Ω 1kW Wire Wound Chassis Mount Resistor ±5%, Резистор

1852358
Производитель: RS PRO
Цена за шт.
40875.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

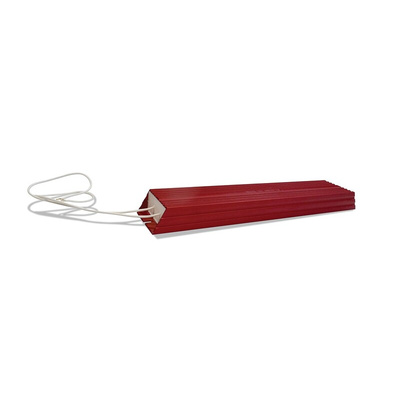

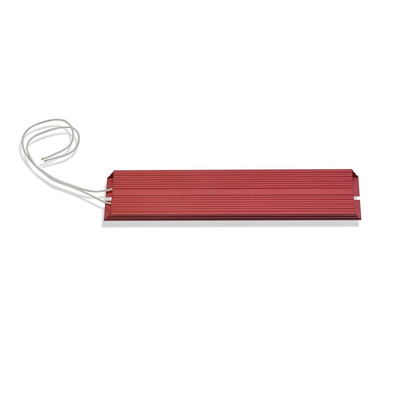

RS PRO Braking Resistor

The RS PRO R1000 series aluminium metal-clad braking resistor has a resistance of 10ohm and power rating value of 1000W. Its dimensions are 400mm x 60mm x 30mm (L x W x H). This high-quality wire lead resistor is designed for direct heat sink attachment.

Features and Benefits

• High power density
• Heat sink mountable for increased power dissipation
• Operating temperature ranging between -25°C and 250°C
• Temperature coefficient ranging between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm

Certifications

• UL approved (cables)
