RS PRO Type RTD Resistance Thermometer Detector (RTD) Wire, 5m, Silicone Rubber Insulation, +200°C Max, 7/0.2mm

RS PRO RTD Extension Cable – 4 core, 5m

Introducing the range of RS PRO Platinum Resistance thermometer extension cables, ideal for use as a general-purpose extension wire and can be used to extend 2, 3 or 4 wire RTD configurations. The material of this extension cable offers high flexibility and is waterproof.
Most commonly used with the Pt100Ω thermometers but also suitable with other types such as Pt130, Pt500 & Pt1000Ω.
This extension cable has 4 cores and is silicone rubber insulated with 7/0.2mm tin plated copper conductors. The cores are twisted with polyester tape and nylon cord followed by a tin plated copper conductors twisted together with silicone rubber outer jacket. The silicone rubber material of the jacket offers heat resistance to 200°C has good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids.

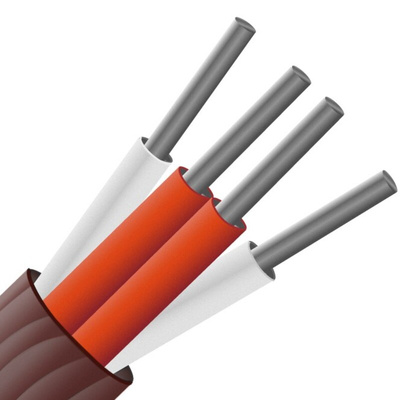

The cores are colour coded with 2 x Red and 2 x White with a brown outer jacket and are supplied in 5, 10 and 25 metre reel lengths.

Features and Benefits

• This RS PRO cable has silicone rubber insulation and is for extending Platinum Resistance Thermometers
• This type of extension cable has an excellent temperature range, from –40°C to +200°C
• Can be used with 2,3 or 4 wire RTD configurations
• Versatile and can be used with many types of thermometres such as Pt100Ω Pt130, Pt500 & Pt1000Ω
• This makes for a great general purpose cable as it is highly flexible and waterproof as well able to protect your wires from oils, acids and any other fluid it may come into contact with
• Silicone rubber insulated outer jacket gives this type of cable an extra layer of protection making the cable durable and reliable

Applications

Thermometers are used in a variety of workplaces and also for home uses as well. This type of cable can add additional flexibility and versatility to a platinum resistance thermometer and are offered in a range of different lengths, 5, 10 and 25 metres to suit any combination and application they are needed for. Thermometer extension cables can often be found in:
Scientific Labratories
Thermostats in homes and offices
Manufacturing, engineering and production environments

Product codes for other lengths

• 10m - 8275823
• 25m - 4554242
