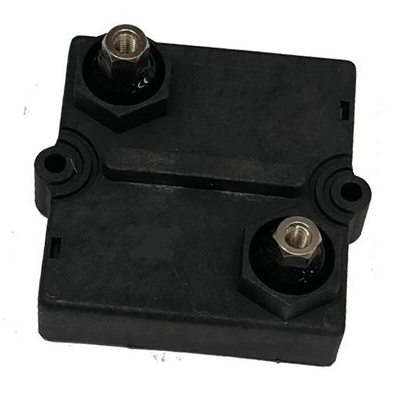

RS PRO, 25Ω 2kW Thick Film Chassis Mount Resistor ±10%, Резистор

RS PRO Thick Film Power Resistor

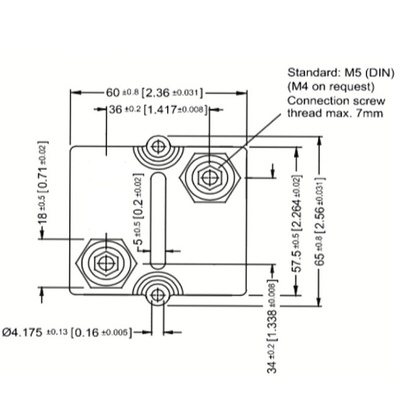

The RS PRO RSPR2K series thick film panel mount power resistor has a resistance of 25ohm and power rating value of 2000W. Its dimensions are 60mm x 65mm x 15mm (L x W x H). The heatsink resistor is suitable for multiple industries and applications. Best results can be achieved by using thermal conduction to the heatsink Rth–cs<0.025°K/W, which in turn can be reached by using thermal transfer compound with heat conductivity of 1W/mK.
Note:
The flatness of the cooling plate must be better than 0.05mm overall
The roughness of the surface should not exceed 6.4μm

Features and Benefits

• Operating temperature ranging between -55°C and 150°C
• Temperature coefficient ranging between -150ppm/°C and 150ppm/°C
• Termination style: Screw
• Maximum continuous current: 120A
• Minimum insulation resistance: 10Gohm at 1000V

Applications

• Power supplies
• Control devices
• Robotics

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
