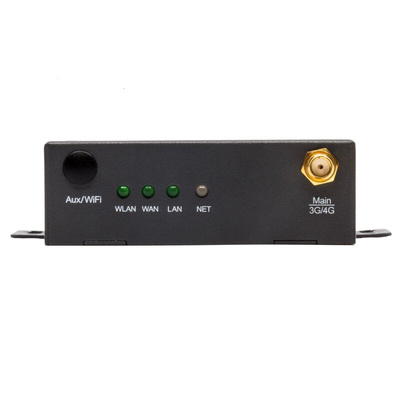

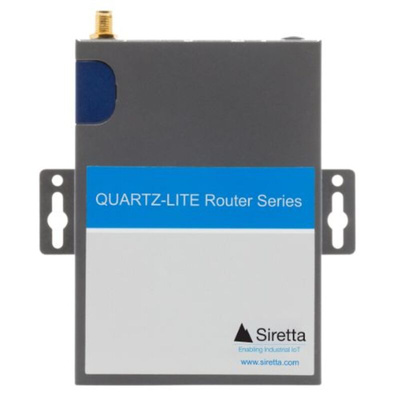

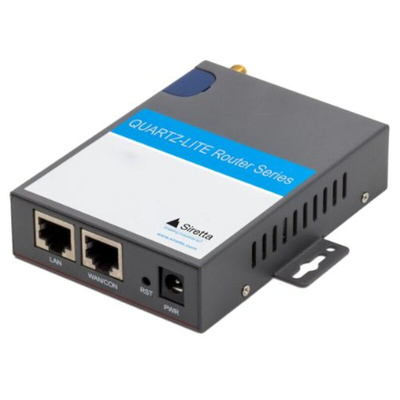

Siretta QUARTZ-LITE-GW21-LTE(EU) 3G, 4G, 1 x SIM, 2 x LAN Ports

Siretta QUARTZ-LITE 4G WiFi Dual LAN GPS Router

The QUARTZ-LITE-LTE router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-LTE’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

European 4G LTE bands
GPS Capability
2.4 GHz Wi-Fi support
Dual LAN
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

2 x 10/100 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
1 x RP-SMA (Male) Wi-Fi Interface
1 ´ SMA (Female) Cellular interface
1 ´ SMA (Female) GPS interface

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Certifications

CE
UKCA
RoHS

QUARTZ LITE Hardware Manual

QUARTZ LITE EU Software Manual

Quartz Series Datasheet
