Siretta QUARTZ-LITE-G21-UMTS(EU) + ACCESSORIES 3G, 1 x SIM, 2 x LAN Ports

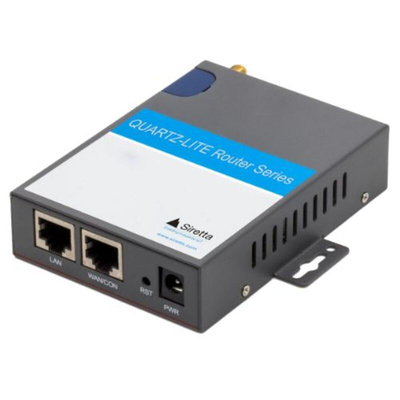

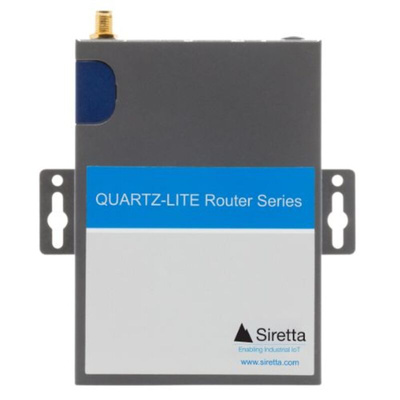

Siretta QUARTZ-LITE 3G Dual LAN GPS Router

Siretta’s QUARTZ-LITE-UMTS router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-UMTS’s fast data transfer capability reaches up to 21Mbps download and up to 5.76Mbps upload speed. It also has fallback to 2.5G communication should 3G/UMTS be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

European 3G / UMTS bands
GPS Capability
Dual LAN
High speed data via UMTS network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

2 x 10/100 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
1 ´ SMA (Female) Cellular interface
1 ´ SMA (Female) GPS interface

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Certifications

CE
UKCA
RoHS

QUARTZ LITE Hardware Manual

QUARTZ LITE EU Software Manual

Quartz Series Datasheet
