Siretta QUARTZ-LITE-GW21-LTE(EU) + ACCESSORIES 3G, 4G, 1 x SIM, 2 x LAN Ports

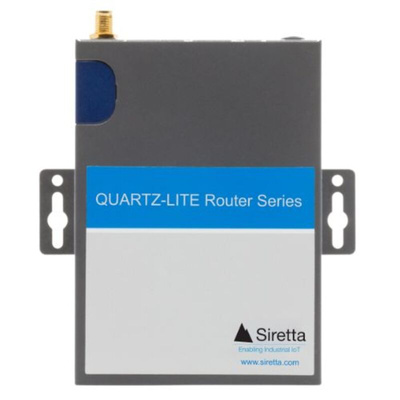

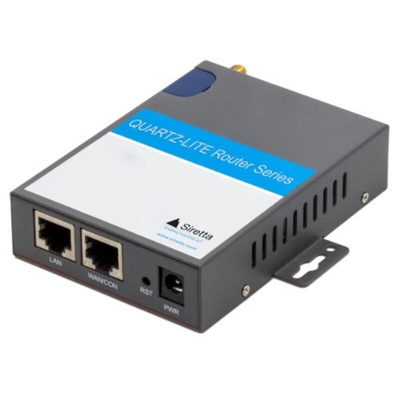

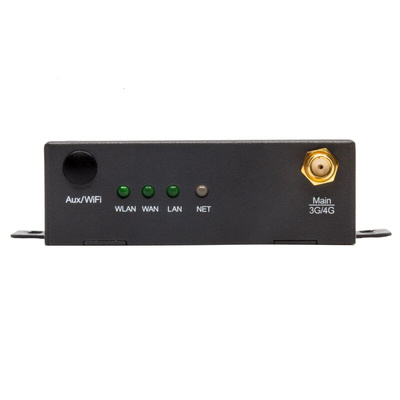

Siretta QUARTZ-LITE 4G Dual LAN WiFi GPS Router With Accessories

The QUARTZ-LITE-LTE router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-LTE’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

European 4G LTE bands
2.4 GHz Wi-Fi support
GPS Capability
Dual LAN
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

2 x 10/100 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
1 x RP-SMA (Male) Wi-Fi Interface
1 ´ SMA (Female) Cellular interface
1 ´ SMA (Female) GPS interface

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Accessories Included

1 x Cellular Antenna
1 x Wi-Fi Antenna
1 x GPS Antenna
1 x LAN Cable
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS

QUARTZ LITE Hardware Manual

QUARTZ LITE EU Software Manual

Quartz Series Datasheet
