Siretta QUARTZ-COMPACT-G11-LTE(EU) + ACCESSORIES 3G, 4G, 1 x LAN, 1 x RS-232, 1 x SIM Ports

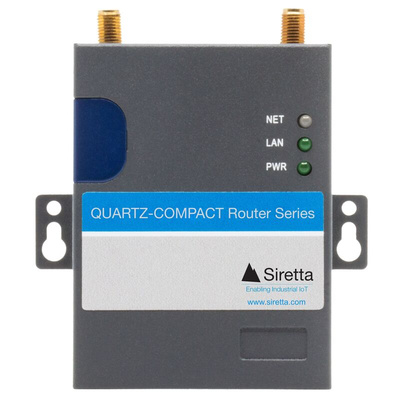

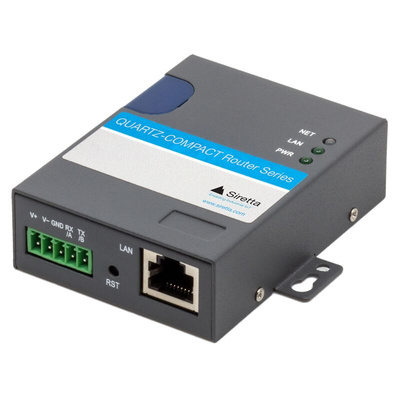

Siretta QUARTZ-COMPACT 4G LAN GPS Router With Accessories

The QUARTZ-COMPACT-LTE router is an ultra compact, high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-COMPACT-LTE fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fallback to 3G communication should 4G/LTE be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

European 4G LTE bands
GPS Capability

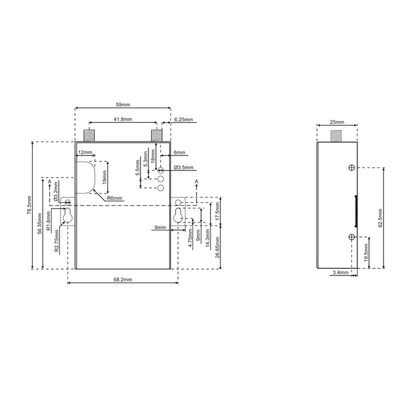

Compact Design - Ideal for small enclosures
RJ45 LAN
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

1 x 10/100 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
1 ´ SMA (Female) Cellular interface
1 ´ SMA (Female) GPS interface
1 ´ DC Power Interface (7.5 to 32 V DC)

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Accessories Included

1 x Cellular Antenna
1 x GPS Antenna
1 x LAN Cable
1 x Power Block Interface
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS

Quartz Series Datasheet

QUARTZ COMPACT Hardware Manual

QUARTZ COMPACT EU Software Manual
