RS PRO Green/Yellow 6 mm² Hook Up Wire, 7/1.04 mm, 100m, Кабель

RS PRO Single Core LSZH HO7Z-R Conduit and Trunking Cable, Green/Yellow, 6 mm² CSA , 450 V DC, 750 V AC, 100 m

This single-core cable from RS PRO is designed for use in environments where smoke or fumes would pose a major hazard, such as in office buildings and public places. It's a low smoke zero halogen (LSZH) cable, meaning it produces minimal smoke and no toxic fumes in the event of fire.
The wire is intended for mains cable runs in building work like lighting or power circuits, but you can also use it for earth-bonding or grounding. The multi-strand design makes it easier to bend and pass down conduits.
This cable has voltage ratings for both DC (450 V) and AC (750 V) power, so you can use it in both mains electricity or for automotive or chargeable battery-powered applications. It comes in a 100 m reel, making it easy to dispense.

Features and Benefits

• Single-core cable type
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)

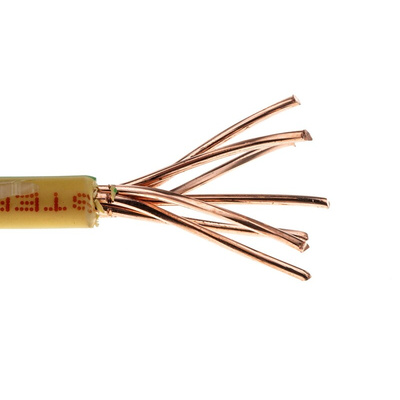

• Core strand size of 1.04 mm
• Cross-sectional area of 6 mm²
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 0.8 mm

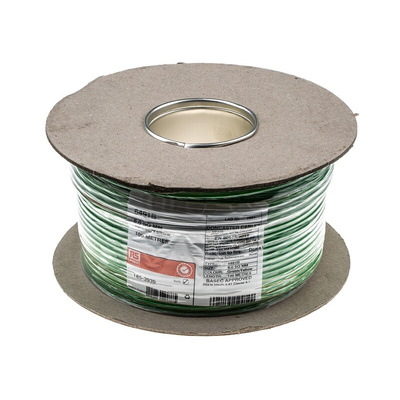

• Length of 100 m
• Seven strands
• Outer diameter of 5.4 mm
• Low smoke zero halogen (LSZH) outer sheath material
• Green/yellow sheath colour
• Voltage rating of 450 V DC, 750 V AC
