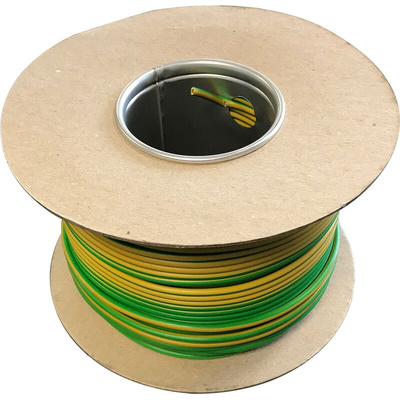

RS PRO Green/Yellow 10 mm² Hook Up Wire, 7/1.35 mm, 50m, Кабель

RS PRO Single-Core LSZH HO7Z-R Conduit and Trunking Cable, Green/Yellow, 10 mm² CSA , 450 V DC, 750 V AC, 50 m

If you need to install wiring in residential housing or office buildings, use this RS PRO conduit cable. It's low smoke zero halogen (LSZH), so it won't produce toxic fumes in the event of fire, increasing safety.
The yellow and green sheath shows the wire is intended for a ground connection. It has voltage ratings for both AC and DC power, so it's suitable for mains electricity as well as devices that use direct current.
This cable has a multi-strand design that makes it easy to bend, allowing for easier cable runs through conduits or trunking. Typical uses for this type of wire include light fittings and electrical circuit breakers such as switchgear and control gear. It's suitable for indoor use.

Features and Benefits

• Single-core cable type
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)
• Core strand size of 1.35 mm
• Cross-sectional area of 10 mm²
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 1 mm
• Length of 50 m
• Seven strands
• Outer diameter of 7 mm
• Low smoke zero halogen (LSZH) outer sheath material
• Green/yellow sheath colour
• Voltage rating of 450 V DC, 750 V AC
