RS PRO Green/Yellow 16 mm² Hook Up Wire, 7/1.7 mm, 50m, Кабель

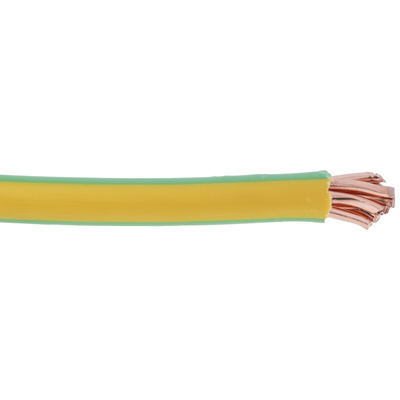

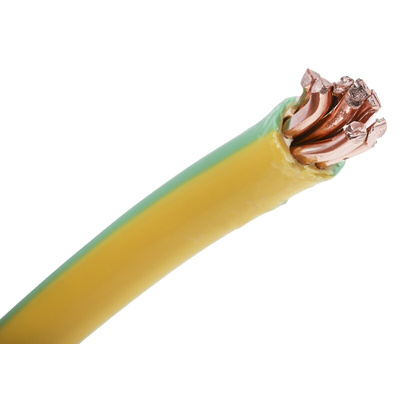

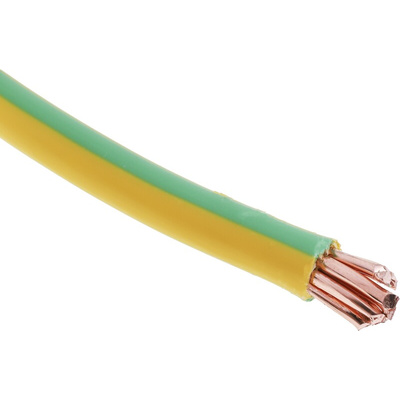

RS PRO Single-Core LSZH HO7Z-R Conduit and Trunking Cable, Green/Yellow, 16 mm² CSA, 450 V DC, 750 V AC, 50 m

This conduit cable from RS PRO has a low smoke zero halogen (LSZH) outer sheath. This means it won't release toxic fumes or excess smoke in the event of fire, making it suitable for use in public spaces like houses or offices.
The yellow and green sheath colour makes this cable easily identifiable as an earth connector. The wire has both AC and DC voltage ratings, so you can use it either as part of a building's wiring for mains or lighting or as an earth bond for equipment that utilises direct current.
The cable has a 16 mm² cross-sectional area (CSA), but the multi-core design ensures you can still bend it around corners. It comes in a 50 m reel for easy deployment.

Features and Benefits

• Single-core cable type
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)
• Core strand size of 1.7 mm
• Cross-sectional area of 16 mm²
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 1 mm
• Length of 50 m
• Seven strands
• Outer diameter of 8 mm
• Low smoke zero halogen (LSZH) outer sheath material
• Green/yellow sheath colour
• Voltage rating of 450 V DC, 750 V AC
