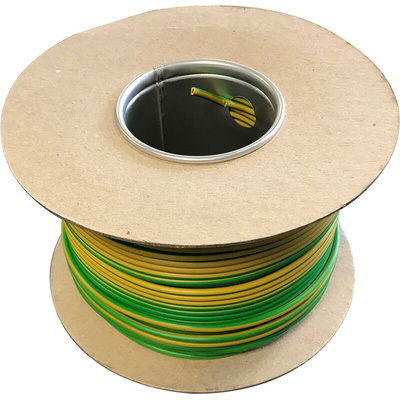

RS PRO Green/Yellow 16 mm² Hook Up Wire, 7/1.7 mm, 100m, Кабель

RS PRO Single-Core LSZH HO7Z-R Conduit and Trunking Cable, Green/Yellow, 16 mm² CSA, 450 V DC, 750 V AC, 100 m

If you need a safe option for wiring domestic or commercial building, choose this trunking cable from RS PRO. It has a low smoke zero halogen (LSZH) sheath, meaning it won't produce toxic fumes or smoke during a fire.
This cable is designed for both surface-mounted and embedded conduits and is intended for closed systems, such as channels with cover. The yellow/green sheath identifies it as an earth connection.
The multi-strand design makes it easier to bend the cable around corners. The 750 V AC voltage rating means you can safely use it with mains electricity, for example in lighting. The wire is also rated for DC voltage, so you can use it in devices that rely on direct current.

Features and Benefits

• Single-core cable type
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)
• Core strand size of 1.7 mm
• Cross-sectional area of 16 mm²
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 1 mm
• Length of 100 m
• Seven strands
• Outer diameter of 8 mm
• Low smoke zero halogen (LSZH) outer sheath material
• Green/yellow sheath colour
• Voltage rating of 450 V DC, 750 V AC
