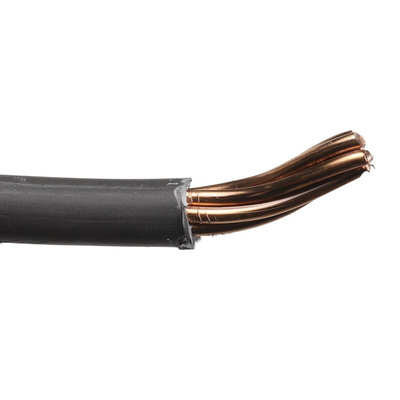

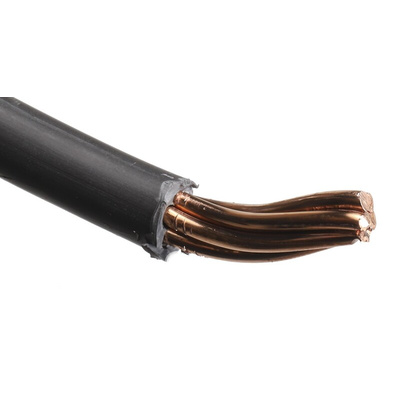

RS PRO LSZH Thermosetting Insulated Single Core Cable
From our trusted and reliable on brand RS PRO, this 50m low smoke zero-halogen (LSZH) thermosetting insulated single-core cable features a plain annealed copper conductor offering excellent electrical conductivity, with a nominal cross-sectional area of 35mm². The HO7Z-R harmonised black coloured cable has a voltage rating of 450VDC and 750VAC. This high quality single core cable features a durable LSZH thermosetting insulation, making it ideal for use in installations where smoke and acid gas emission could potentially cause a major hazard in the event of a fire. The cable is intended for installation in surface mount or embedded conduits or similar closed systems, as well as being suitable for use in channels with cover. RS PRO LSZH single core cables are available in a wide range of sizes and standard core colours.
Features and Benefits
• Operating temperature ranges between -15°C and 90°C
• Low smoke non halogen insulation
• Insulation wall thickness: 1.2mm
• Strand size: 2.52mm
• Overall diameter ranges between 9mm and 11.3mm
• Number of strands: 7
Applications
LZSH (low smoke zero-halogen) single core cables are perfect for providing a simple yet reliable electrical wiring solution for applications such as:
- Switchgear
- Control gear
- Fixed protection installation
Certifications
• BS EN 60228
• BS EN 50363-5
• BS EN 50525-3-41:2011
Why RS PRO?
RS PRO is our own brand range and brings you a wide variety of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Техническая спецификацияRS PRO Datasheet
Cable Selection Guide
