RS PRO Armoured Cable

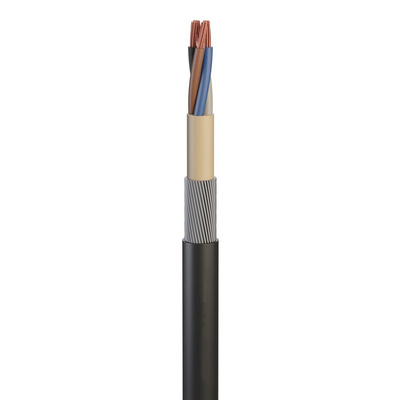

The RS PRO 2-core armoured cable has an outer diameter of 20mm and has galvanised steel wire armour (SWA) construction. This multicore cable is polyvinyl chloride (PVC) type 9 sheathed and has a copper conductor. The nominal cross-sectional area of the conductor is 16mm² and has a voltage rating of 1kV, 600V. These cables are designed to be installed in air, clipped to surface, on cable tray/ladder work, embedded in concrete and buried direct or in the ducting underground.

Features and Benefits

• Insulation material is thermosetting XLPE Type GP8
• Minimum bend radius of 8
• Operating temperature between -15°C and 90°C

Applications

• Industrial wiring
• Mains distribution

Certifications

• BS EN 60228
• BS 7655-1.3
• BS 7655-4.2
