SW2-06S1-02L0-EA001-Z, Zippy Snap Micro Switch, Pre-wired Terminal, 6 A, SP-CO, IP67, Микропереключатель

SW2-06S1-02L0-EA001-Z

Zippy SW2 series

The SW2 series is a highly reliable and versatile range of snap action microswitches packaging in an industry standard V4 housing. Electrical ratings of between 0.1 and 10A 125/250VAC (model dependent) mean the SW2 can be used in both low current and more demanding applications, making it suitable for a wide variety of applications. The actuator is sealed according to the IP67 standard, ideal for tough environments where protection against water and dust ingress is required. Termination options include solder, quick connect and 300 mm wire leads. The range has an operating temperature of -40 to 125 °C (model dependent) and boasts a mechanical service life of min. 2 million cycles. The SW2 series is both ENEC and UL certified so suitable for global use.

Features & Benefits

IP67 protection against water and dust ingress
Wide range of electrical ratings
High quality UL94V-0 PBT switch housing and button
Terminal options include wire leads for easy installation
High mechanical service life

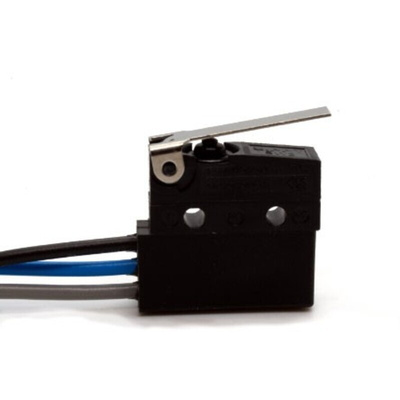

Part Number SW2-06S1-02L0-EA001-Z
IP67 sealed
Electrical rating 6A 125/250V AC
S.P.D.T. contact configuration
Operating force max. 66 gf
Operating temperature of -40 to 85 °C
Wire leads 20 AWG 300 mm (on actuator side)
Straight lever actuator 19.4 mm long (from pivot point)
ENEC & UL certified

Datasheet
