RS PROMetric Plunger Dial Indicator, 0 → 25 mm Measurement Range, 0.01 mm Resolution , ±0.008 mm Accuracy With

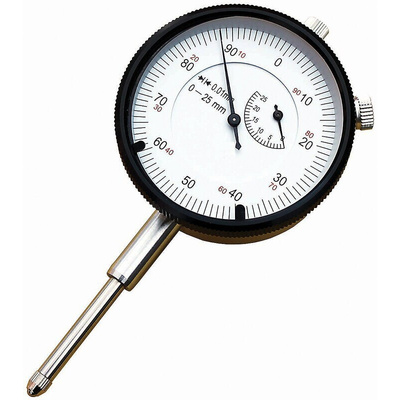

RS Pro Plunger Dial Indicator

A precision plunger dial indicator with a large 60mm/ 2.35in dial. Ideal or general purpose workshop or precision machine shop use.

Rotating bezel with bevel lock
Adjustable dial
Built in tolerance pointers
M2.5 diameter ball anvil measuring contact
Lug back mounting fitted as standard

RS PRO Metric Plunger Dial Indicator, 0 → 25 mm Measurement Range, 0.01 mm Resolution, ±0.008 mm Accuracy

When you need to measure the clearance between two surfaces, turn to this plunger dial indicator from RS PRO. With accuracy up to a tolerance of ±0.008 mm, it's useful for taking precise measurements in metalworking and toolmaking applications.

This plunger dial indicator provides metric measurements up to 25 mm on an easy-to-read 60 mm dial. It has an adjustable dial and a ball anvil that can be used on rounded surfaces, and built-in tolerance pointers make it easy to tell if a measurement is within tolerance limits. The ground racks within the indicator slowly move the anvils, to achieve a more accurate measurement.

You'll find this plunger dial indicator handy for precision tool manufacturing and general-purpose workshop applications. It's often used to check the clearance of objects such as crankshafts or piston decks.

Features and Benefits

• Metric plunger dial indicator
• Accuracy of ±0.008 mm
• Resolution of 0.01 mm
• Minimum measurement of 0 mm
• Maximum measurement of 25 mm
• Features an adjustable dial and bezel lock
• Fitted with a ball anvil
• Built-in tolerance pointers
• Easy-to-read 60 mm dial
• Lug back fitting

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
