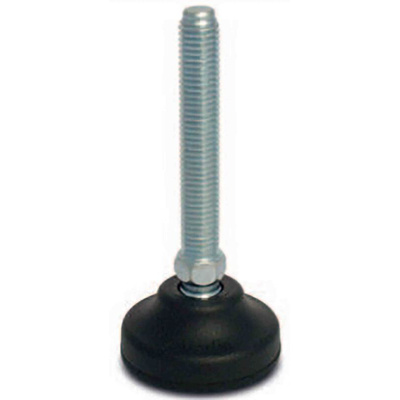

RS PRO M16 Polyamide Adjustable Foot, 1500kg Static Load Capacity 30° Tilt Angle

RS PRO Adjustable Feet M16 75 mm, 65 mm Dia. Polyamide 1500 kg Static Load Capacity 30° Tilt Angle

Using machinery on an uneven floor? Add these RS PRO feet to keep your equipment level and supported. Each foot is mounted on an articulated base to allow tilting and comes with a threaded leg for easy adjustment.
These feet are made from strong plastic and metal to support loads of up to 1500 kg. The polyamide base material is mould- and scratch-resistant. It's also reinforced with fibreglass for added strength. This thread uses corrosion-resistant 304-grade stainless steel for extra durability.
A range of industries, including pharmaceutical, food and cosmetics manufacturers use this type of support. Install these levelling feet on processing machinery, assembly line conveyor belts and cleanroom equipment.

Features and Benefits

• Diameter of 65 mm
• Black foot colour
• Polyamide foot material
• Overall height of 115 mm
• Static load capacity of 1500 kg
• Thread length of 75 mm
• M16 thread size
• Tilt angle of 30 º
