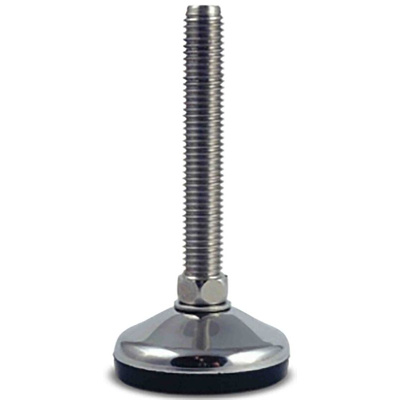

RS PRO M10 Stainless Steel Adjustable Foot, 400kg Static Load Capacity 10° Tilt Angle

RS PRO Adjustable Feet M10 50 mm, 50 mm Dia. Stainless Steel 400 kg Static Load Capacity 10° Tilt Angle

When you need durable feet for your food processing or packing equipment, use these RS PRO adjustable mounts. The feet are made from grade-304 stainless steel for corrosion resistance and mechanical strength. Their non-slip bases are made with vulcanised rubber for high resistance to abrasion, oil and oxidisation.
Made from strong materials, these feet can take static loads up to 400 kg. Each foot can be easily adjusted to your needs. The legs are threaded to set the height and articulated at the base for further flexibility.
These stainless steel mounts are useful for a wide range of applications including laboratory and food and drink processing machinery. Meeting electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, they're also suitable for cleanroom equipment.

Features and Benefits

• Diameter of 50 mm
• Stainless steel foot material
• Overall height of 79 mm
• Shore hardness of 80 Shore A
• Static load capacity of 400 kg
• Thread length of 50 mm
• M10 thread size
• Tilt angle of 10º

RS PRO Datasheet
