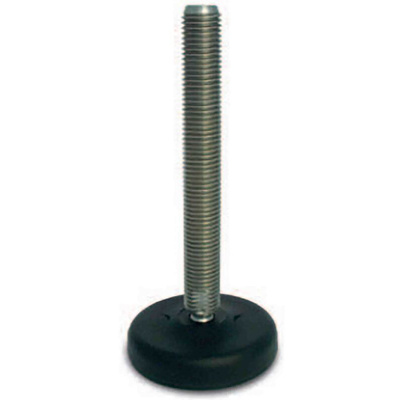

RS PRO M20 Stainless Steel Adjustable Foot, 2000kg Static Load Capacity 30° Tilt Angle

RS PRO Adjustable Feet M20 150 mm, 103 mm Dia. Stainless Steel 2000 kg Static Load Capacity 30° Tilt Angle

When you need strong and adjustable mounts for your heavy equipment, use these robust RS PRO feet. Each foot base is made from a durable polyamide and fibreglass material for high tensile strength and resistance to chemicals and wear.
The feet are supported by legs made from 304-grade stainless steel. This metal is resistant to corrosion and high temperatures, making it useful in many industrial applications.
Use the threaded metal leg on each foot to adjust the height of your equipment and the articulated ball joint to tilt the base. This flexibility is useful for keeping machinery stable on uneven floors and surfaces. Adjustable feet can be added to catering and food processing units, conveyor belts and automated packaging machines.

Features and Benefits

• Diameter of 103 mm
• Black foot colour
• Stainless steel foot material
• Overall height of 187 mm
• Static load capacity of 2000 kg
• Thread length of 150 mm
• M20 thread size
• Tilt angle of 30º

RS PRO Datasheet
