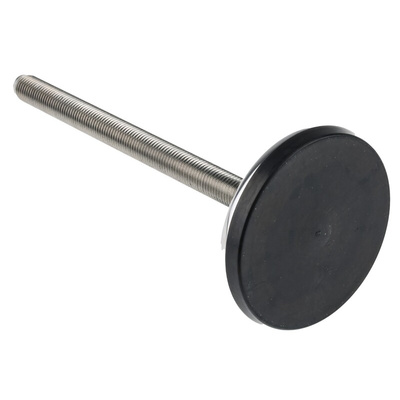

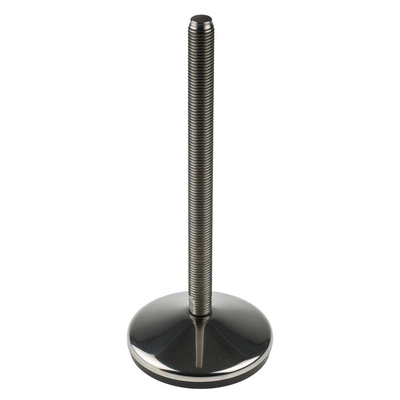

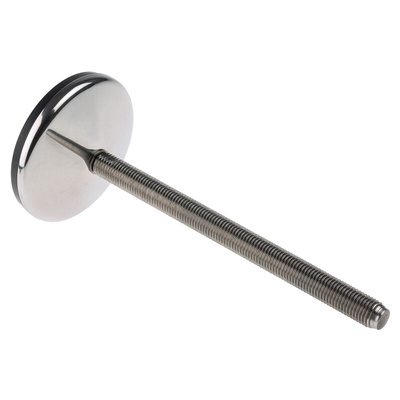

RS PRO M16 Stainless Steel Adjustable Foot, 1500kg Static Load Capacity 10° Tilt Angle

RS PRO Adjustable Feet M16 200 mm, 100 mm Dia. Stainless Steel 1500 kg Static Load Capacity 10° Tilt Angle

Use these adjustable feet from RS PRO to support your equipment, keeping it level and secure. They will hold a load away from the surface, keeping it clean and safe.
The threaded design makes adjustment easy – simply twist the foot to move it up or down inside the unit it is fitted to. With a high load strength of 1500 kg, you can be sure that your equipment is well-supported. These feet are made from stainless steel with oil-resistant rubber, making them easy to keep clean and sanitary for food processing applications.
The M16 thread on these feet will fit into many food processing, packing or conveyor systems with no adaptors required. Having built-in articulation means you don't need to worry about the surface underneath being perfectly flat as these feet will always have a firm footing and good grip.

Features and Benefits

• Diameter of 100 mm
• Stainless steel foot material
• Overall height of 242 mm
• Shore hardness of 80 Shore A
• Static load capacity of 1500 kg
• Thread length of 200 mm
• M16 thread size
• Tilt angle of 10º
