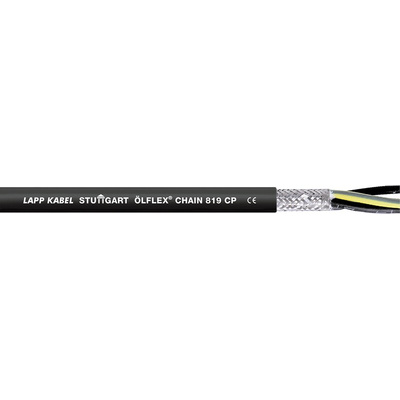

1027905, Lapp ÖLFLEX CHAIN 819 CP Control Cable, 12 Cores, 0.5 mm², CY, Screened, 50m, Black PUR Sheath, Кабель

Olflex Chain 819 CP Flexiable Control Cable

From Lapp, a range of industrial screened control cables from the Olflex Chain 819 CP Series. With a high degree of flexibility, these multicore cables are ideally suited for light to medium-duty power chain applications. Mechanically robust and highly oil-resistant, the Olflex 819 series of cables perform well in the most demanding environments.

The Olflex Chain 819 conductors are made up of fine wire copper strands with a PVC compound insulation. The cores are then further protected by an overall tinned copper braided screen. A robust LAPP PU-Special Blend outer sheath completes the construction.

Features and Benefits

• Mechanically robust multicore cable
• Highly oil resistant
• Good resistance to acids and alkalis
• UV Resistant
• EMC Compliant
• For use in dry, damp or wet interiors
• Black cores with white numbers in accordance with DIN EN 50334 and VDE 0295, class 5
• Basic Line Performance – Moderate travel lengths or acceleration
• UL/ cUL certified for North America

Applications

With their superb physical properties, the ÖLFLEX® Chain 819 multi-core cables are designed for use in flexible installations, such as power chain and moving machinery. These industrial cables are primarily used in industries where a higher level of protection is required. Some of the most common are

• Power Chains and moving machine parts
• Wiring of machines, tools, and devices
• Appliances
• Electrical connections and equipment
• Control cabinets
• Control and regulation circuits
• Linear automated movement
• EMC sensitive environments

Accessories

Olflex cables should be used with accessories that match their capabilities, and as such Lapp provides a range of compliant cable glands. Cable glands from the MS-SC-M series are recommended to go with the Olflex Chain 819 range of multicore cable

• Part number 839-5331 is an M16 Cable Gland
• Part number 839-5340 is an M20 Cable Gland
• Part number 839-5343 is an M25 Cable Gland
• Part number 839-5347 is an M32 Cable Gland

LAPP Control Cable, 300/500V Voltage Rating, 10mm Outer Diameter - ÖLFLEX CHAIN 819 CP Series - 1027905

For dependable signal delivery to your automated setup, choose this control cable from LAPP. Its copper conductors efficiently carry power for reliable connections every time. Thanks to its tin-plated copper braid, the lead is shielded against high EMI levels for clear, noise-free signals. The PUR sheath resists damage from flames and oil to withstand tough industrial settings. With a narrow 10mm outer diameter, this cable slips easily through tight spots.

Features & Benefits

• Flexible stranded cores for installation in busy cabinets
• Takes surge voltages up to 4kV, cutting the risk of damage from power faults
• Numbered conductors make it easy to identify connections during wiring

Applications

• Automotive industry
• HVAC systems
• Factory assembly lines

Can I use this control cable in my outdoor application?

Yes, its UV-resistant PUR jacket stays strong in direct sunlight, so it's a safe bet for outdoor tasks. It also functions in ambient temperatures between -40°C and +80°C.

Note

For suitable cable gland see part number 839-5340
