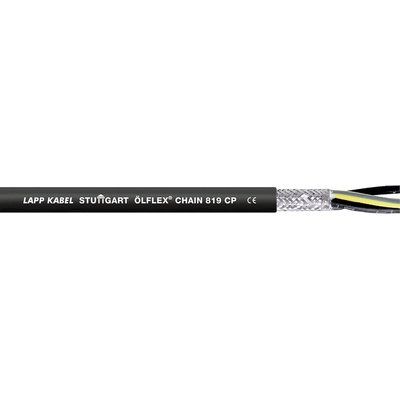

1027937, Lapp ÖLFLEX CHAIN 819 CP Control Cable, 25 Cores, 1.5 mm², CY, Screened, 50m, Black PUR Sheath, Кабель

LAPP Control Cable, 25 Cores, CY Type - ÖLFLEX Series - 1027937

Connect your power supplies and control systems with this LAPP control cable. It has 25 cores for use in light-duty to medium-duty energy supply chains. The cable is flame-retardant, so you can be sure it will stop burning in 20 seconds. It also resists UV radiation, so exposure to sunlight won't degrade the cable sheath. As the outer jacket is made from strong PUR (polyurethane), it's reliable and resists strain and fraying when bent around corners. You can rely on it for use in demanding industrial environments.

Features & Benefits

• PVC insulation material protects the copper cores from oil and chemical contaminants
• Operating temperature range between -40°C and +80°C for use in harsh conditions
• Halogen-free to prevent toxic emissions in the event of fire
• Tinned-copper braided wires safeguard against corrosion wear

Applications

• Computer networks
• Telecommunication equipment
• Industrial machinery
• Instrumentation and measuring

How do I join this cable's unterminated ends to connectors?

Add connectors to the unterminated ends by using a pair of wire strippers to remove a portion of the cable coat. Once the cores are visible, wrap them around the conductors on the connector terminals.

Note

For suitable cable gland see part number 839-5347

Olflex Chain Cable

Datasheet 1027937

Cable Selection Guide
