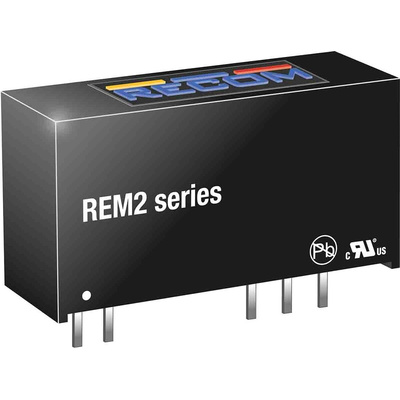

REM2-0505D, Recom REM2 DC-DC Converter, ±5V dc/ ±200mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +95°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, ±1.2% Line Regulation, 82% Efficiency - REM2 Series - REM2-0505D

When device safety is at the top of the priority list, choose this medical-grade RECOM DC-DC converter. The unit takes incoming feeds between 4.5 and 5.5V DC and converts them to a steady ±5V DC supply to keep your low-voltage devices running. Reinforced 5.2kV DC isolation safeguards users against electric shocks when they're in direct contact with the application. As it measures just 23 (L) x 8 (W) x 12.2mm (D), it's easy to squeeze this converter onto a crowded PCB.

Features & Benefits

• ±1.2% line regulation assures you the unit maintains a steady output despite changes in input voltages
• ESD-safe unit prevents interference caused by electrostatic discharge from nearby devices
• Through-hole mounting style for fast and easy installation

Applications

• Medical imaging equipment
• Industrial control installations
• Testing and measuring devices

What temperatures can I use this converter in?

At full load, this converter performs without a hiccup at temperatures between -40°C and +80°C. At 50% load, it can handle the heat right up to +95°C.

What does 'medical grade' mean for DC-DC converters?

A medical-grade device like this one incorporates safety features that prevent injury when it's in contact with patients. It must be fully tested to meet strict regulations.
