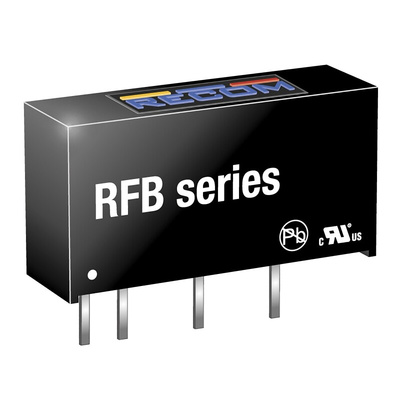

RFB-0505S, Recom RFB DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, SIP-7 Package, 80% Conversion Efficiency - RFB Series - RFB-0505S

Clamp down on unstable power supplies with this DC-DC converter from RECOM. It adjusts voltages between 4.5 and 5.5V DC to a 5V DC output to make sure your equipment gets the input it needs. Thanks to an output accuracy of ±2%, you can be sure things will tick along reliably. Speedy through-hole mounting lets you slot the unit onto a board without hassle. There's no need to worry about damage caused by electrical faults, as the device's built-in short-circuit protection shuts issues down as soon as they pop up.

• Standard pin layout for easy installation
• Typical ripple voltage of 55mV to dial down disruption from electrical noise
• Switches 80% of input loads, making for energy-efficient conversion
• Measures just 19.6 (L) x 6 (W) x 10.2mm (D) to slip into busy setups
• Plastic and resin insulation cuts the risk of electric shocks

Applications

• Portable cameras
• Manufacturing industry
• Power distribution systems

The RFB DC/DC converter is typically used in cost sensitive general purpose power isolation and voltage matching applications. Despite its low cost, it is a fully specified converter with 1kVDC isolation, industrial operating temperature range of -40°C to +85°C without derating and UL/EN certifications.

Can I use this converter in extreme temperatures?

Low cost 1W converter
1:1 input voltage range
SIP7 package
1kVDC isolation
Efficiency up to 80%
UL60950-1, CAN/CSA C22.2 No. 60950-1 certified

Yes, this product handles operating temperatures between -40°C and +85°C, so it's a safe bet for tough industrial conditions.
