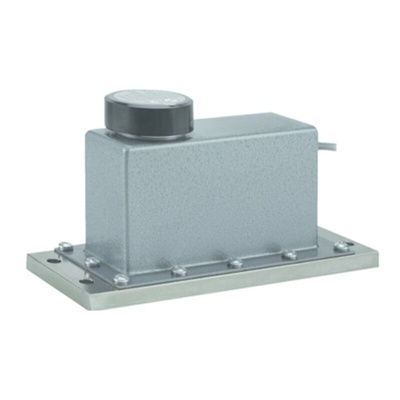

00240-002K-E0-07X, Tedea Huntleigh Load Cell, 2kg Range, Compression Measure

Model 240 is specifically designed to be used where fast acquisition of a stable load signal is paramount. The Model 240’s unique fluid damping system allows the load cell to be used in applications that previously required the use of LVDT’s or similar types of measuring devices. The Model 240 brings load cell adaptability into check weighing and grading applications.Available in coated steel or stainless steel, the Model 240 is suitable for most wash-down applications. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Capacities 2–50 kg
Painted steel construction
Stainless steel construction
Applications
Multi-head filling machines
Check weighing
Grading machines
Liquid filling
Dynamic weighing

Datasheet 00240-002K-E0-07X
