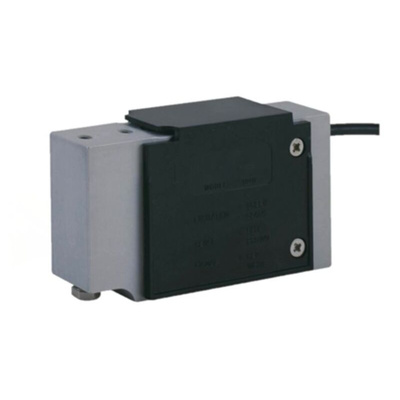

01010-030K-G0-52X, Tedea Huntleigh Cable Load Cell -10 (Compensated) °C, -20 (Safe) °C +40 (Compensated) °C, +70 (Safe) °C

1855986
Номер производителя: 01010-030K-G0-52XПроизводитель: Tedea Huntleigh
Цена за шт.
32844.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Model 1010 is a single-point load cell designed for direct mounting of low cost, low capacity weighing platforms. Its use in large platforms, combined with its high accuracy and low cost, makes this load cell ideally suited for a large range of weighing applications, including bench scales and counting scales. A special humidity resistant protective coating is available which ensures long-term reliability. Model 1010’s built-in overload stop can provide mechanical protection against overloading. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.

Capacities 3–90 kg
Aluminium construction
Single-point 400 x 400 mm platform
Applications
Bench scales
Counting scales
Grocery scales

Техническая спецификация
pdfDatasheet 01010-030K-G0-52X
Глубина:
33.5мм
Диапазон измерений Force/ Load:
30кг
Длина:
66мм
Материал корпуса:
Алюминий
Рабочая температура - максимальная:
+40 (Compensated) °C, +70 (Safe) °C
Рабочая температура - минимальная:
-10 (Compensated) °C, -20 (Safe) °C
Размеры:
80 мм
Сила, измеренние:
Compression
Степень защиты IP:
IP65
Тип клеммы:
Кабель
