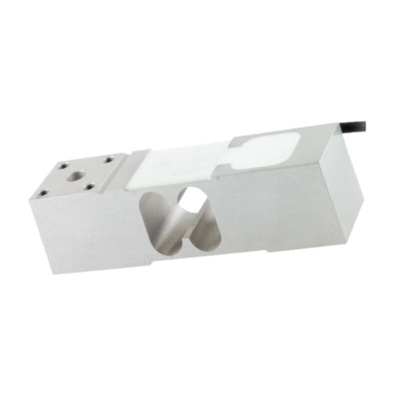

01242-200K-C3-10X, Tedea Huntleigh Low Profile Load Cell, 200kg Range, Compression Measure

Model 1242 is a high accuracy, low profile, low cost, two-beam, single-point load cell ideally suited for industrial application where space is limited. Typical applications include platforms, hanging scales and personal weighers. A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension can be achieved by feeding this voltage into the appropriate electronics.

Capacities 50–250 kg
Aluminium construction
Single-point 400 x 400 mm platform
Applications
Small platforms
Hanging scales
Personal scales

Datasheet 01242-200K-C3-10X
