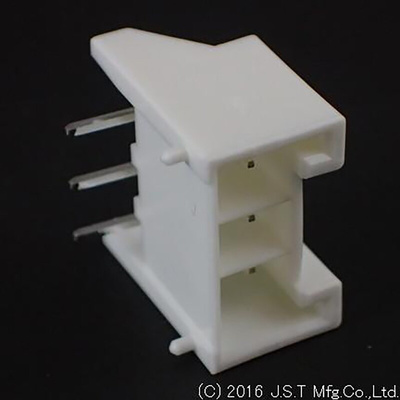

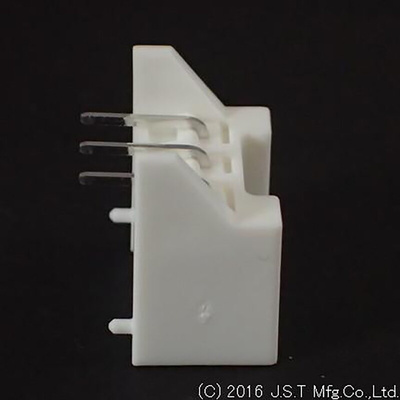

S03B-VUSS-1 (LF)(SN), JST VU Series Right Angle Through Hole PCB Header, 3 Contact(s), 3.96mm Pitch, 1 Row(s), Shrouded

PCB Connectors including FFC / FPC, board-to-board, wire to board, crimp style, IDC connectors and more

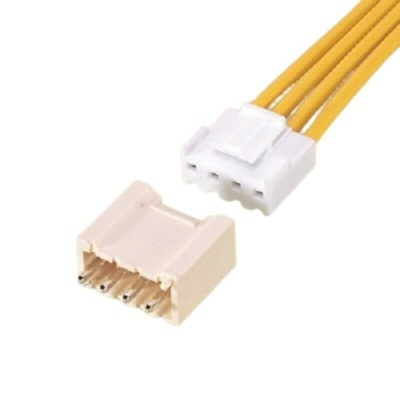

VU connector is small type 3.96mm (.156") pitch PC board connector for large current and has the high reliability in a power supply circuit, considering the fully shrouded connector header structure against 'vibrating connector' and 'distorted extraction'

Secure locking device
The housing has a locking device to securely hold the header, preventing accidental disconnection, because of external force that might result from the routing of wires or of vibration, inverse insertion and mating with incorrect circuit.
Shrouded header
Shrouded header provides the longer cree page distance and countermeasure for distorted extraction of connector.
Flanged press pin
Header pin is the flanged press pin, preventing accidental removal of the pins due to distorted extraction of connector.
