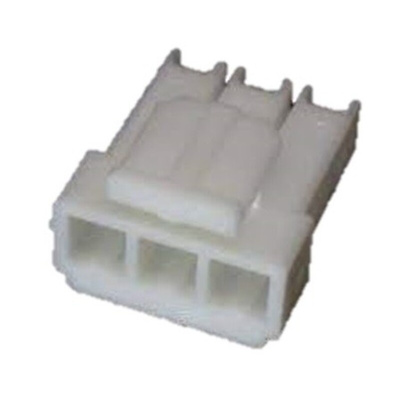

XLP-03V, JST, XL Male Connector Housing, 5mm Pitch, 3 Way, 1 Row, Корпус разъема

The XL connectors can be used for wire-to-wire or wire-to-board connections. Since all contacts are individually and totally surrounded by housing walls, and since the connector pitch is 5.0mm (.197"), there are ample creep and space distances between the contacts. The box-shaped contact is adaptable to a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits.

Reliable housing construction
Since all contacts are individually and totally surrounded by housing walls, and since the connector pitch is 5.0mm (.197"), adequate electrical creep distances and dielectric spacings
Easy contact insertion
The contacts can be inserted into the housing easily and smoothly.
Box-shaped contact
The box-shaped contact used successfully in the VH and NH connectors is also used in the XL connectors. This contact is adaptable to a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits.
Two kinds of connections
The XL connectors can be used for wire-to-wire connection and for printed circuit board connection.

Datasheet_1 XLP-03V
