RS PRO End Mill, 3 mm, 4 mm, 6 mm, 8 mm Cutter, HSCo, 6 mm, 12 mm, 16 mm Shank, 9.5 mm, 12.5 mm Cut, Концевая фреза

RS PRO 10 Piece Screwed Shank End Mill Set

Introducing the RS PRO 10 piece end mill set, designed for cutting and shaping various metals with accuracy and precision. This high-quality set from RS PRO offers exceptional wear-resistance and long tool life, ensuring that the cost per use is economic while offering consistent performance. By incorporating 10 of the most commonly used end mill sizes, this set is a highly versatile piece of cutting equipment that can be used by the professional technician or DIY enthusiast that offers superior results and finishing across a wide range of applications.

Features and Benefits:

• This RS PRO end mill set offers 10 pieces of the most commonly used end mill sizes, designed with a screwed shank for additional security


• The end mills are made from HSS (high-speed steel) for extra durability, wear-resistance and longer tool life, especially when being used on difficult-to-cut materials


• 4 flute design for centre cutting, ideal for peripheral and finish milling

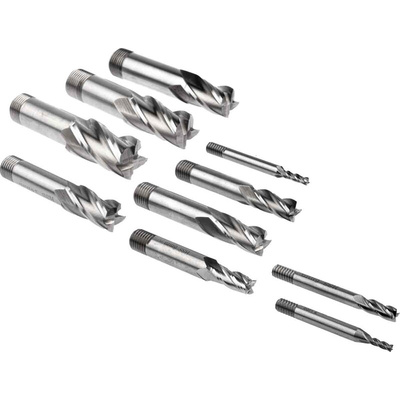

• The 10 piece set contains 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm and 20mm end mills

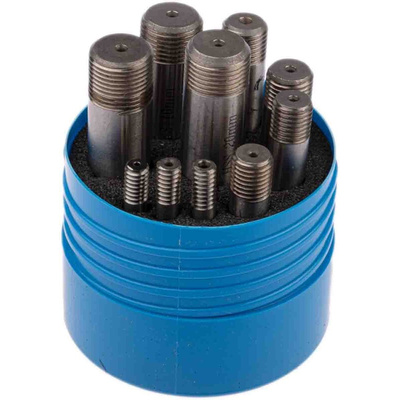

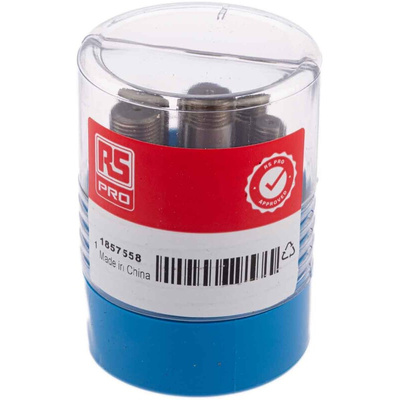

• Supplied in a case for convenient storage and tool protection

Applications:

An end mill removes material by their movement within the milling machine or from the cutter’s shape. The number of flutes (spirals on the end mill) give different results e.g.:

• 2 flutes allow for more chip carrying capacity and are used primarily in slotting and pocketing non-ferrous materials


• 3 flutes have the same flute space as two flutes, but also have a larger cross-section for greater strength. They are used for pocketing and slotting ferrous and nonferrous materials.


• 4, 5, 6 and 8 flute designs allow for faster feed rates, but due to the reduced flute space, chip removal may be a problem. They produce a much finer finish than two and three flute tools and are often used for peripheral and finish milling

• Profiling


• Milling – side milling, face milling, tracer milling, plunge milling


• Ramping


• Semi-finishing and finishing

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
