RS PRO Illuminated SPST, On-Off Rocker Switch Panel, Клавишный переключатель

RS PRO SPST Latching Illuminated Red Dot Rocker Switch 250V

A robust and reliable illuminated dot latching rocker switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case and button for a rocker switch fit for industrial and commercial environments.

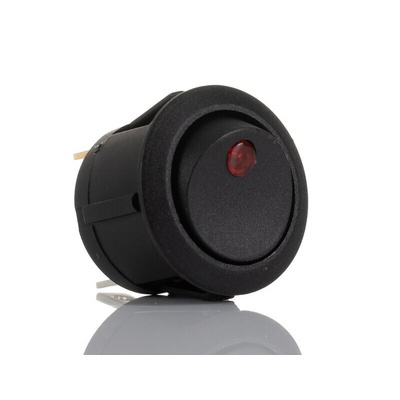

The RS PRO illuminated rocker switch features a black body with a red illuminated dot when in the on position and quick connect contacts for easy panel mounting in a 20.6 x 20.8mm panel cut out.
The red on off switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life.
A hard wearing and reliable rocker switch fit for a wide range of applications including computer peripherals and medical instrumentation.

Features and Benefits

• Red dot illuminated rocker switch


• SPST switch configuration


• Nylon frame construction to UL 94V-2


• Dimensions of 21 x 17.8 x 15mm


• Panel mount


• Maximum contact resistance is 30mΩ


• Operating force ranges between 300gf and 600gf


• Silver plated Copper terminals


• 4.8 x 0.8 mm quick connect terminals


• 125 V (10A)/ 240 V ac (6A) mains rated


• Operating temperature range - 20° C to 125° C


• 20.6 x 20.8 mm panel cut out


• Electrical life of 10,000 cycles

Standards and Approvals: UL94V-2, RoHS compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
