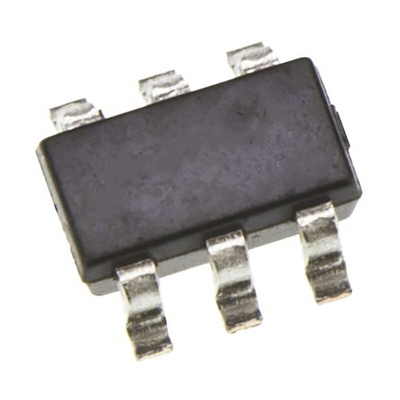

onsemi, FOD8173 CMOS Output Optocoupler, Surface Mount, 6-Pin SOP

The FOD8173 series packaged in a stretched body 6−pin small outline plastic package, consists of an aluminium gallium arsenide (AlGaAs) light emitting diode and a CMOS detector IC comprises an integrated photodiode, a high speed transimpedance amplifier and a voltage comparator with a totem−pole output driver. The electrical and switching characteristics are guaranteed over the extended industrial temperature range of −40°C to 100°C and a VDD range of 3 V to 5.5 V.

FOD8173T − 8 mm Creepage and Clearance Distance, and 0.4 mm insulation distance
20 kV/μs Minimum CMTI
20 Mbit/sec Date Rate (NRZ) 55ns max. Propagation Delay 20ns max. Pulse Width Distortion
3.3 V and 5 V CMOS Compatibility
Specifications Guaranteed Over 3 V to 5.5 V supply voltage and −40 to 100°C extended industrial temperature range
Applications
Microprocessor System Interface
Industrial Field Bus Communications
Programmable Logic Control
Isolated Data Acquisition System
Voltage Level Translator
